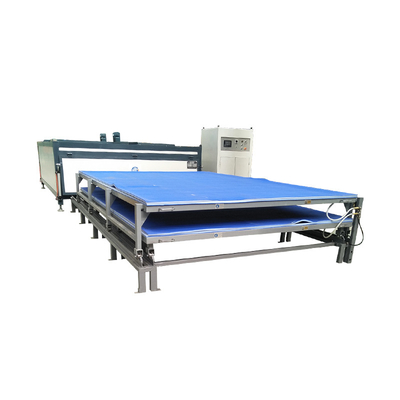

Building Or Decoration Two Layer Glass Laminating Machine With EVA / SGP / TPU Film For Decoration Or Construction

1 set
MOQ
Building Or Decoration Two Layer Glass Laminating Machine With EVA / SGP / TPU Film For Decoration Or Construction
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Applicable Industries: Building Material Shops, Manufacturing Plant, Construction works
Showroom Location: None
Condition: New
Machine Type: glass laminating machine
Production Capacity: 54sqms/2hrs
Voltage: 220/380/415V, (3-phase AC 220V-440V)
Power: 38kw
Dimension(L*W*H): 2980*4600*1150mm
Weight: 2600 kg
Warranty: 1 Year
Key Selling Points: Energy saving
Glass Thickness: 3-19mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: New Product 2021
Warranty of core components: 1 Year
Core Components: Motor, PLC, Pump, Engine
product name: glass laminating machine
Application range: building or decoration
Model: FD-J-5-2
Operation system: Siemens PLC
Floor space: 4500*10500mm
Process time: 40-120 (min)
Working temperature: 90-140℃
Production capacity: 53(m2/cycle)
N.W.: 2600kgs
Informations de base
Model Number: FD-J-5-2
Conditions de paiement et expédition
Packaging Details: Wrapped with moisture proof film Wooden case suitbable for container loading
Supply Ability: 30 Set/Sets per Month
Description de produit
Product Description
The operating principle is through high temperature and high vacuum to melt the interlayer film (EVA/SGP/TPU) to make two/more pieces of glass stick together firmly, with high transparency without any bubbles. Main Components And Accessories: This model of laminated glass machine is mainly consisted of the five parts: PLC control system, Heating system, Vacuum system,Ground rail.
Heating room
We adopt patented heating system ,Heat up and down,like carpet,Turbo blower make hot air circulation and strong convection inside of furnace ,equipped with temperature sensing device,it can reflect and adjust temperature automatically,heating fast and evenly. Heating fast and evenly can improve yield .Beside the heating-insulation system adopts seamless welding,minimize the passage of heat.Compared with other similar machines in markets,it saves electricity more than 50% with longer service life.
Vacuum pump
We adopt wind-cooling vacuum pump, self-developed patent product , working stable. It could continuously work for 24 hours. Vacuum rate reach up to -0.09 — -0.098Mpa. Equipped a buffer tank with each pump, to prevent the air go into the silicone bag when suddenly power off. And we also equipped water vapor separation device with air filter and oil filter, it can separate the water/ air and water/oil to longer the service life of the pump.
PLC control system
The PLC equipped with Siemens brand smart series,together with a remote controller ,easy to operate ,all the needed data can be set on the touchable screen,the programming system is self-developed by our own electrical engineer,which is highly matched with all the functions .
Silicon bags.
The thickness of the bag is 3 mm, it’s a tear resistant material, and could stand high temperature to 180°C. Quality guarantee period keeps at least 4 years in normal condition. Each silicon bag can lay glass around 40mm thickness, it improves processing efficiency. Compared with the similar suppliers, their bags only can be used for 1.5 year ,because of the poor tear resistant material in it.
Teflon mesh
Equipped with two pieces of Teflon Mesh for each silicon bag, through this way ,not only can protect Silicone Bag from being teared by glass, but also make sure high vacuum rate during processing.
Ground rail
Equipped with double working station ground rail to move the large pieces of glass,saves a lot of space and time.
Specification
item
value
Applicable Industries
Building Material Shops, Manufacturing Plant, Construction works
After Warranty Service
Video technical support, Spare parts
Local Service Location
None
Showroom Location
None
Condition
New
Machine Type
glass laminating machine
Production Capacity
54sqms/2hrs
Place of Origin
China
Brand Name
FANGDING
Voltage
220/380/415V
Power
38kw
Dimension(L*W*H)
2980*4600*1150mm
Weight
2600kgs
Certification
CE
Warranty
1 Year
Online support, Free spare parts
Key Selling Points
Energy saving
Glass Thickness
3-19mm
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Marketing Type
New Product 2021
Warranty of core components
1 Year
Core Components
Motor, PLC, Pump, Engine
product name
glass laminating machine
Application range
building or decoration
Model
FD-J-5-2
Operation system
Siemens PLC
Voltage
(3-phase AC 220V-440V)
Floor space
4500*10500mm
Process time
40-120 (min)
Working temperature
90-140℃
Production capacity
53(m2/cycle)
N.W.
2600kgs
Applications
Our machine is used to produce various laminated glasses with TPU/EVA/PDLC film as interlayer , as well as the special materials like marble paper ,silk fabric ,dried flowers and grasses, the processed products mainly apply to architectural decoration,green house,curtain wall,jewelry counter, partition glass wall,bullet-proof glasses, etc.
Certifications
our products have obtained the European Union CE certification, Canada CSA certification and Germany TUV certification,etc.

Packing & Delivery
We take a strict delivery procedure, before packing the prepared machine shall be carefully checked by professional staff and engineer .Our professional quality inspector inspected every parts of glass laminating machine carefully before delivering to customers. Make sure the machine are in good quality when received by customer. We haven't received any complaint about laminated glass machine these years.
Company Profile
Fangding Technology Co., Ltd is a high-tech enterprise which was founded in October 2003, located in Taoluo industrial park , Donggang district, Rizhao city, covering an area of more than 20,000 square meters, with a registered capital of 100 million yuan,specializing in R&D、production and sales &service of the laminated glass machinery and the interlayer films,the The main products are EVA laminated glass machine、Heat Soak Furnace、 Smart PVB glass laminating line and EVA、TPU、SGP films. At present, the company has D1, D2 pressure vessel production license, has obtained the ISO 9001 quality management system certification,the products have obtained the European Union CE certification, Canada CSA certification and Germany TUV certification,it has the independent export permission and successively awarded the high-tech enterprise, gazelle enterprise of Shandong province, famous brand in shandong province, and others more than 30 honorary title. The company participated in the world glass industry well-known exhibitions every year, such as Germany Dusseldorf international glass industry exhibition, China international glass industry technology exhibition, China international window and curtain wall exhibition, Italy Milan international glass industry exhibition, the Middle East (Dubai) international glass exhibition, the United States Atlanta international window and curtain wall exhibition and other exhibitions. During the exhibition ,through the on-site processing of the laminated glass ,Fangding presented its unique design style and manufacturing process to the customers! The company has a large number of skilled senior technical personnel and experienced management personnel, established cooperation with many scientific research institutions ,has been committing to provide full set of solutions of the glass laminating for the deep-processing enterprises ;the company has reached co-operations with many global top 500companies. In the international market, the products has been exported to Asia, Europe, America and other more than 60 countries and regions .Be responsible for the customers and develop together with them!It has laid a solid foundation for enterprises to compete on the international stage.the company has won the trust and praise from the customers all over the world for years. Looking at the world and advancing with the times, we focus on the details and refine the quality. We gather bits and pieces to chase the future. Fangding Technology uses the passion of innovation to ignite the development of high-end technology enterprises of China.
FAQ
1. who are we?
We are based in Shandong, China, start from 2003,sell to Domestic Market(41.00%),Western Europe(7.00%),Southeast Asia(7.00%),Eastern Europe(6.00%),Eastern Asia(6.00%),Southern Europe(6.00%),South America(6.00%),Mid East(5.00%),North America(5.00%),Northern Europe(3.00%),Oceania(3.00%),South Asia(2.00%),Africa(2.00%),Central America(1.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Laminated glass machine,glass laminting machine,glass laminating furnace,EVA film,glass laminating equipment

4. why should you buy from us not from other suppliers?
Laminating machine Double independent system: The heating cabinet is divided into two separate chambers, the upper two layers and the lower two layers can work independently, saving 50% energy, can laminate two different kinds of glass at the same time.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
