Aperçu /Produits/Furonnerie de durcissement/Factory High Quality Tempered Glass Heat Soak Testing Machine Glass Machine

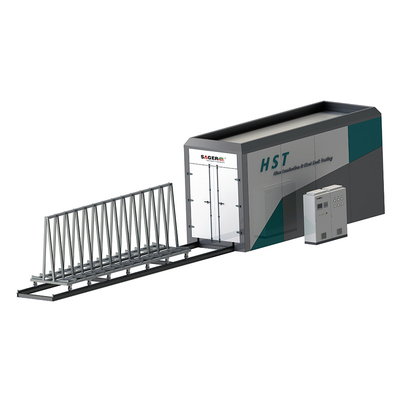

Factory High Quality Tempered Glass Heat Soak Testing Machine Glass Machine

1.0 Sets
MOQ
Factory High Quality Tempered Glass Heat Soak Testing Machine Glass Machine
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Applicable Industries: Manufacturing Plant, glass shop, glass factory
Showroom Location: Brazil
Condition: New
Machine Type: Glass Tempering Furnace
Production Capacity: high efficient
Voltage: Optional
Power: 150kw, 150KW
Dimension(L*W*H): 13500*3400*4050mm
Weight: 4.5 kg
Warranty: 1 Year
Key Selling Points: Easy to Operate
Glass Thickness: 38mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: PLC
Max. Glass size: 4000*2500mm
Max.Glass Thickness: 19+19mm
Min. Glass Thicknes: 4+4mm
Layout: 13500*3400*4050mm
Machine weight: 4.5 ton
Heating temperature: 0-300℃
Electricity: 380V 50HZ ( can be customized )
Cycle production time in oven: 3-5 hours
Informations de base
Conditions de paiement et expédition
Packaging Details: Suitable for ocean container
Supply Ability: 5 Set/Sets per Month
Description de produit
High Quality Tempered Glass Heat Soak Testing Machine Glass Machine
Core Components
PLC
Max. Glass size
4000*2500mm
Max.Glass Thickness
19+19mm
Min. Glass Thicknes
4+4mm
Layout
13500*3400*4050mm
Machine weight
4.5 ton
Heating temperature
0-300℃
Power
150KW
Electricity
380V 50HZ ( can be customized )
Cycle production time in oven
3-5 hours

Glass Heat Soak Furnace

Tempered glass could have spontaneous breakage without receiving any external force, which is the nature of tempered glass. The reason comes from nickel sulfide inside the glass. Nickel sulfide is ~Nis in high temperature during the heating section of tempering procedure. When cooled rapidly in cooling section, there is no enough time for it to turn β-Nis of low temperature. The morphic transformation will last for ten of years after the tempering glass is installed. Leading to spontaneous breakage.
Heat soak furnace is assistant equipment to tempering. Upon completion of glass tempering procedure, to avoid breakage happens after installation. This increase the safety and reliability of building.
The heating is achieved by hot air convection with air blower force, the temperature is controlled by PLC with with SRC controller, it is able to set and save parameters, check the processing data, copy the data and print it with computer.

Machining Center

All metal sheets used on the equipment are processed by laser cutting, the main body of the machine is welded with high-quality steel and processed by CNC gantry milling, and the mechanical parts are processed by CNC machining center.
Loading glass machine to customers all over the world.
Every year our company participate in exhibition at home and abroad and get a lot of opportunites to cooperate with new and old customers, Now our produc has sold in more than 80 countries such as Germany, Belgum, Australia, USA, Turkey, Bahrain,Israel, Paraguay, Argentina, Columbia, Venezuela, Guatemala, Douminican Republic etc.We also have a branch office in Brazil…
Sagertec. Established in 2008, a professional manufacturer and exporter that is concerned with design, development and production of glass processing machinery.
Main Products including: PVB glass laminating machine, EVA glass lamination furnace, PVB/EVA glass lamination line, glass edge polishing machine, glass washing machine , glass drilling machine etc.

China Team

Brazil Team

Our business philosophy is "KEEP INNOVATION, SERVICE GLOBAL. Being provide qualified and advanced equipment and solutions for our clients in glass industry is our mission".
