Aperçu /Produits/four de fonte en verre/High Speed ​​Architecture Glass Bending Tempring Machine

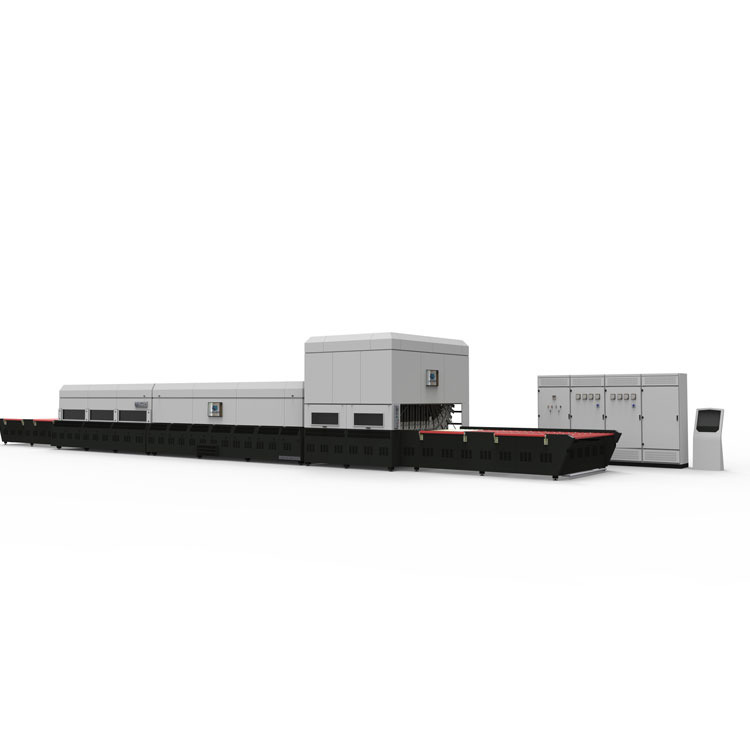

High Speed ​​Architecture Glass Bending Tempring Machine

1 Set
MOQ
High Speed ​​Architecture Glass Bending Tempring Machine
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Restaurant, Home Use, Construction works
Showroom Location: None
Condition: New
Machine Type: Glass Tempering Furnace
Production Capacity: 98%
Voltage: 380V
Power: 800KW
Dimension(L*W*H): according to customer's request
Weight: according to customer's request
Warranty: 1 Year
Key Selling Points: Automatic
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: None
Certification: ce
After-sales Service Provided: Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Application: Architecture, Furniture, Household Appliance, Shower room
Glass can be tempered: Low-E glass,clear glass,tinted glass,pattern ,screen printed glass
Installed Power: 800KVA
Heating method: Radiation
Max. Bending size: 1500*1800mm
World Famous Parts: Vesuvius Rollers, Siemens PLC, Siemens Inverter
Informations de base
Certification: ce
Conditions de paiement et expédition
Packaging Details: seaworthy and some parts packed in wooden cases
Supply Ability: 15 Set/Sets per Month
Description de produit
Why Choose Us

Luoyang Lever Industry Co., Ltd.

A Professional manufacturer of Glass Tempering Plant.
More than 19 years experiences in this Glass Processing Inudstry.
Experienced R&D, and Installation & Service Engineers & Technicians team.
Lifetime maintenance support.
Detailed Images
Servo motors & servo controllers control bending forming.
we adopt Gear driving instead of chains for stable running long time, no need adjust always.
Vesuvius Brand Ceramic rollers, the world-famous best brand, Which can ensure the glass was heated and move very smoothly, with its best quality and performance.
Triple Belts Driving, more stable running, even one of them broken, will not affect rollers running.
Stainless steel blowing air butbes to guarantee a cleaning heating chamber.
Same Top quality of insulating materials were used for the whole heating oven inside, can guarantee good performance of insulation effect and energy saving.
Independent nozzles with screw rods. Upper and lower quenching could be moved separately, which is convenient to adjust the flatness of glass.
Powerful Control System with Siemens or Schneider PLC & Frequency Inverter.
Product Description

Multiple function Combinned Bi-directional Flat and Bending Glass Toughening Plant
Crosswise Bending Type Glass Tempering furnace,

Combinned Bi-directional Flat and Bend glass tempering machine is a special plant used to produce the flat and bending tempered glass and thermal strengthened glass, which mainly used in the fields of architecture (doors, windows), Automobile bus side glass, shower room, garden fence, elevator, furniture, etc.

Name

Bend Tempered Glass
Max Loading Area

⌒1500mm *1800mm
Min. Glass Size

400 * ⌒500mm
Glass Thickness

5~19mm
Min. Radius

R≥1200mm, for 5-8mm;
Productivity

27 loads per hour
(take 5mm float glass for sample)
Blower Quantity & Power
315KW x 1SET
(Controlled by frequency inverter)
Finished product rate
≥97% (5mm as sample)

Packing & Delivery
Certifications
Exhibition
Glasstech Mexico 2019
(Glass Technology Expo Mexico) in Mexico city
Date: Jun 11 ～13, 2019
Our Booth no.: AE13-AD14
China International Glass Exhibition 2019, In Beijing, Our booth no: E4-258
China Glass Exhibition 2019
China Glass Exhibition 2018 in Shanghai
China Glass Exhibition 2016 in Shanghai
Company Profile
General Picture
